DER High Frequency and High Voltage Resonant Capacitor
It is widely used in series and parallel resonant circuits of various intermediate frequency and super-audio induction heating power supply and other electronic equipment.
Dielectric:

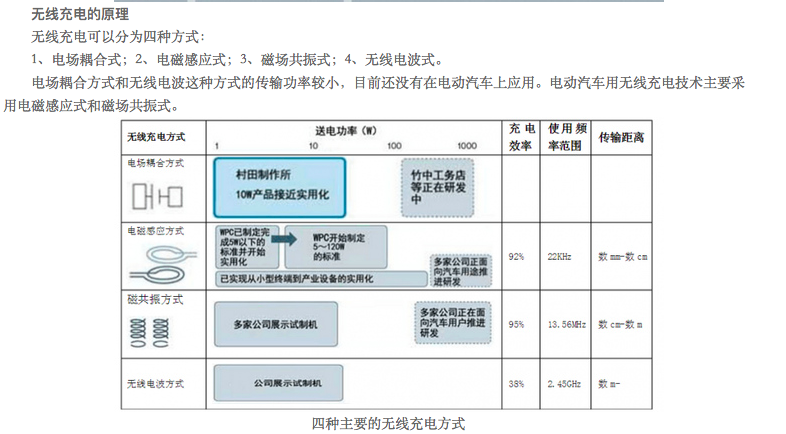

Structure: Special material for wireless charging resonant capacitor and inner series structure of metallized film
Packaging: flame retardant Mylar tape, flame retardant (94V-0) epoxy packaging
Lead-out: Tin-plated copper nut or sheet lead-out
High ripple current capability
High stability, low loss
Self-healing
Working frequency: 20KHZ~85KHZ ~150KHZ ~200KHZ

  • Performance

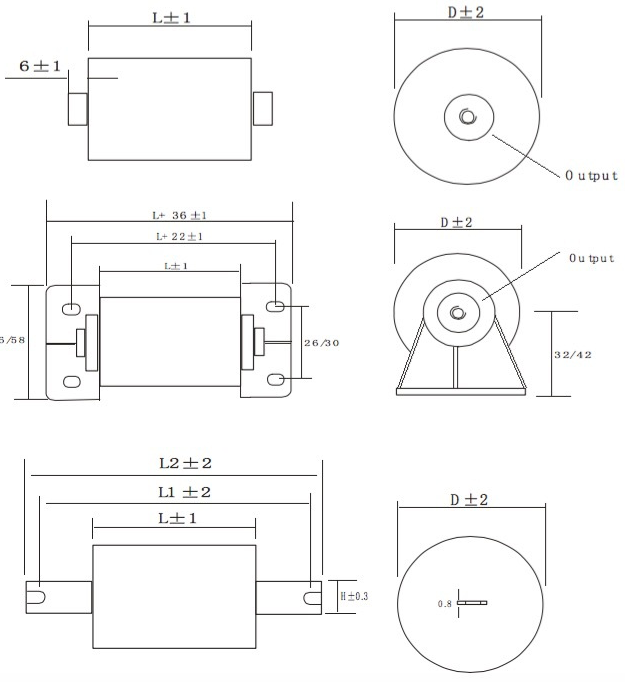

  • Shape and size

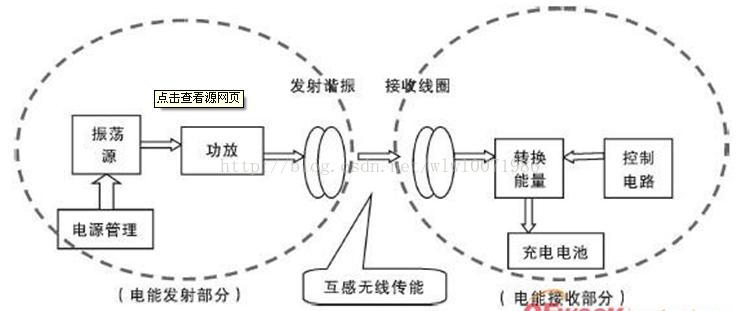

  • Typical circuit diagram
  • Waveforms

技术性能/Specifications

引用标准/Reference standards

IEC 61071 60068

工作温度范围/Operating temperature range

-40~125℃

容量范围/Capacitance

0.0005~4μF

额定电压 /Rated Voltage

1200-8000V.AC

容量偏差 /Tolerance

±5% 10%

极间耐电压 /Test voltage between terminals

1.5Ur(DC) 10s  25±5℃

极壳耐电压 /Test voltage between terminals and case

12000V 50Hz 60S, 25±5℃

损耗角正切/Dissipation factor

tgδ≤6×10-4 at 25±5℃ , 1KHz

绝缘电阻/Insulation resistance

C*IR≥30000S,   at  100VDC,25±5℃,60S

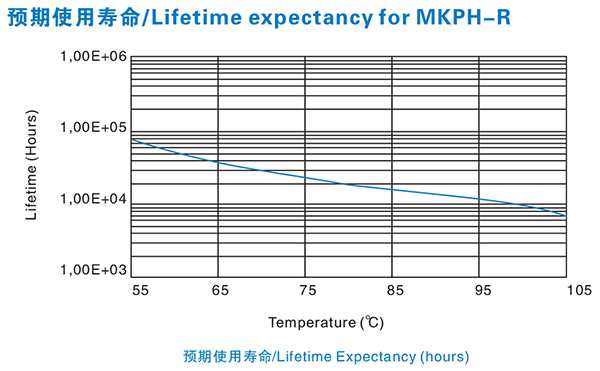

预期寿命/Life expectancy

100000h at Ur and 70℃
