DRP
Current Position: DRP
DRP

Windy used in for power electronic equipment

AC filter applications.

Dielectric: Polypropylene film

Construction: Extended metalized r film,

dry construction

Coating: Aluminium case with resin sealing.

Flame retardant execution(UL 94V-0)

Terminals: Copper nut or screw leads

High current,high capacitance

low losses,low inductance

Self healing


  • Performance

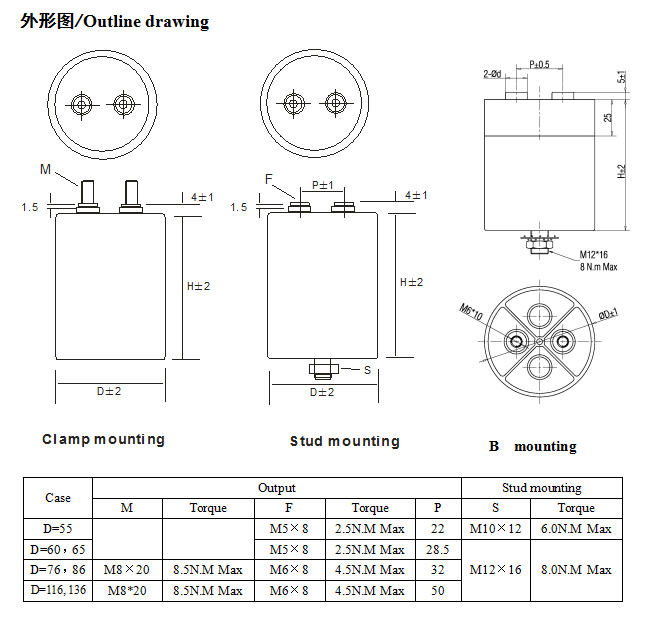

  • Shape and size

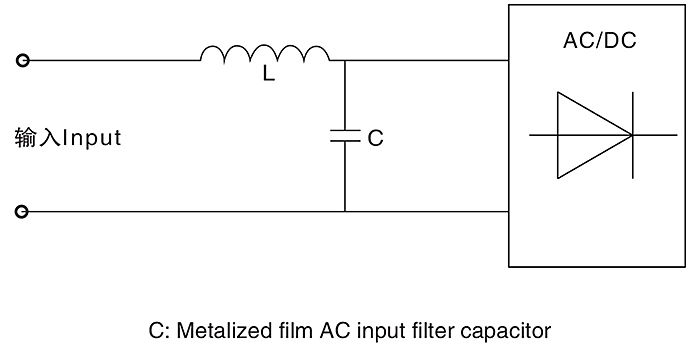

  • Typical circuit diagram
  • Waveforms

技术性能/Specifications

引用标准/Reference standard

IEC 61071, 60068 GB/T14747

工作温度范围/Operating temperature range

-40~85℃

容量范围/Capacitance

6.8-820μF

额定电压 /Rated Voltage

300~1400Vac

容量偏差 /Tolerance

±5%, ±10%

极间耐电压 /Test voltage between terminals

1.5Un 10s 25±5℃

极壳耐电压/ Test voltage between terminals and case

3000V 50Hz 60S, 25±5℃

损耗角正切/Dissipation factor

tgδ≤2×10-3 at 25±5℃ , 100Hz

绝缘电阻/Insulation resistance

Rs≥5000S, at 100VDC,25±5℃,60S

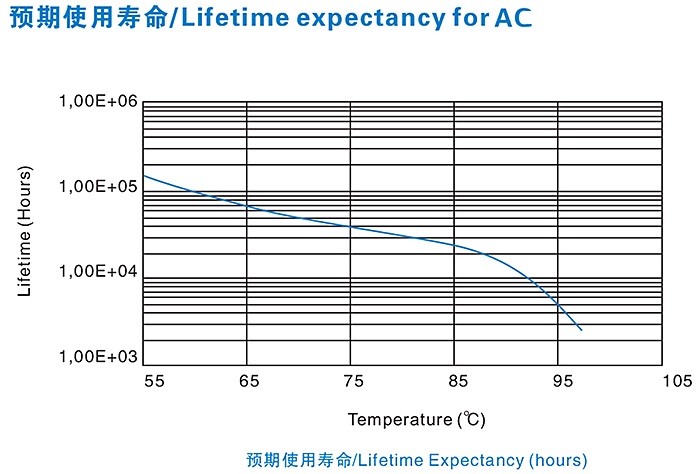

预期寿命/Life expextancy

100000h at Un and 70℃,30000h at Urms
